Modbus (RS485) to LoRaWAN
The RS485 to the LoRaWAN converter is designed for the efficient readings of any device with the RS485 communication, most commonly using the Modbus protocol – such as actuators, electricity meters and other measurement devices. It allows the integration of RS485 devices into the LoRaWAN wireless network, facilitating the data collection and analysis at specified intervals.
The converter can be supplied with a power for the sensor or as a communication element without any external power. It is applicable in an industrial automation, energy, agriculture or smart city projects.
How does it work?
Choose ACRIOS Systems converters. Here’s why
We have a full control over each part of the code in our devices. The hardware we produce can be maintained even many years after installation.
Our converters are manufactured in the Czech Republic with Czech subcontractors. Each unit undergoes final testing while focusing on the functionality of individual communication interfaces and device power consumption.
We pay close attention to the TCO - from using a coulomb counter to obtain an accurate battery life to the pre-configured units delivery with your settings.
Set the primary or the secondary addressing of meters over the LoRaWAN network, find out how many meters are connected or change the reading period directly from your system without the need for local configuration.
We can supply the converter with an external power for a sensor or probe, ranging from 3 to 30 V DC - allowing you to connect the external probes, level measurement devices or weather stations.
Good technical documentation is the foundation of quick integration. On our Wiki, you'll find integration manuals, communication protocol descriptions and videos explaining the usage.
We can read up to 96 connected devices with a single converter, giving you maximum flexibility during installation without the need to attach a converter to each meter, thus the reducing project costs.
Technical specifications
- Powering an external sensor or device is possible directly from the converter, ranging from 5 V DC to 24 V DC
- WAGO terminal block for quick and secure installation
- Battery-powered or externally powered versions available
- Support for Modbus, IEC 62052, or DLMS protocols
- LoRaWAN EU 868 communication
- Default configuration with a device library
- Remote configuration capability over the LoRaWAN network
- User-replaceable battery in battery-powered versions
- SMA standard antenna connector
- Readings with intervals of up to 15 minutes
- Dimensions: 145 x 90 x 55 mm
- Weight: 336 g with battery
- IP Rating: IP67
- Transmitter Power Supply: D-Cell battery 19,000 mAh, 2x D-Cell batteries 38,000 mAh, or external power supply 85-305V AC
- Supported Protocols: Modbus, IEC 62056, DLMS, and others upon consultation
- Maximum Number of Devices: 128 UL
- Features: Time synchronization over the MAC layer, local history of unsent frames, remote configuration of the library + wake-up intervals + what sensor from library to read out
- LoRaWAN: 1.0.4., EU868
- Sensor Power Supply: 5V DC - 24V D*
Note: *Under order code “R12”
- Honeywell ST3000
- ABB 266 Modbus Pressure Transmitter
- Kamstrup MULTICAL 602
- Landis+Gyr Ultraheat T230
- Diehl Sharky 775
- Elster A1800
- Itron Gallus 2000
- Sensus Sonix 2000
- ABB WaterMaster Siemens MAG8000
- Kamstrup MULTICAL 21
- Schneider Electric iEM3000
- Socomec Diris A40
- Carlo Gavazzi EM24
- Comac Cal Flow 38
- Comac Cal Flow 45
- MaxBotix MB7589
- Banner Engineering T30U
- Pepperl+Fuchs UB500
- E+E Elektronik EE210
- Siemens Sitrans T
- Socomec Diris
- ACR-CV-101L-R-D* / RS485 Modbus to LoRaWAN, battery powered
- ACR-CV-101L-R-D2* / RS485 Modbus to LoRaWAN, 2xD-cell battery powered
- ACR-CV-101L-R-EAC* / RS485 Modbus to LoRaWAN, externally powered

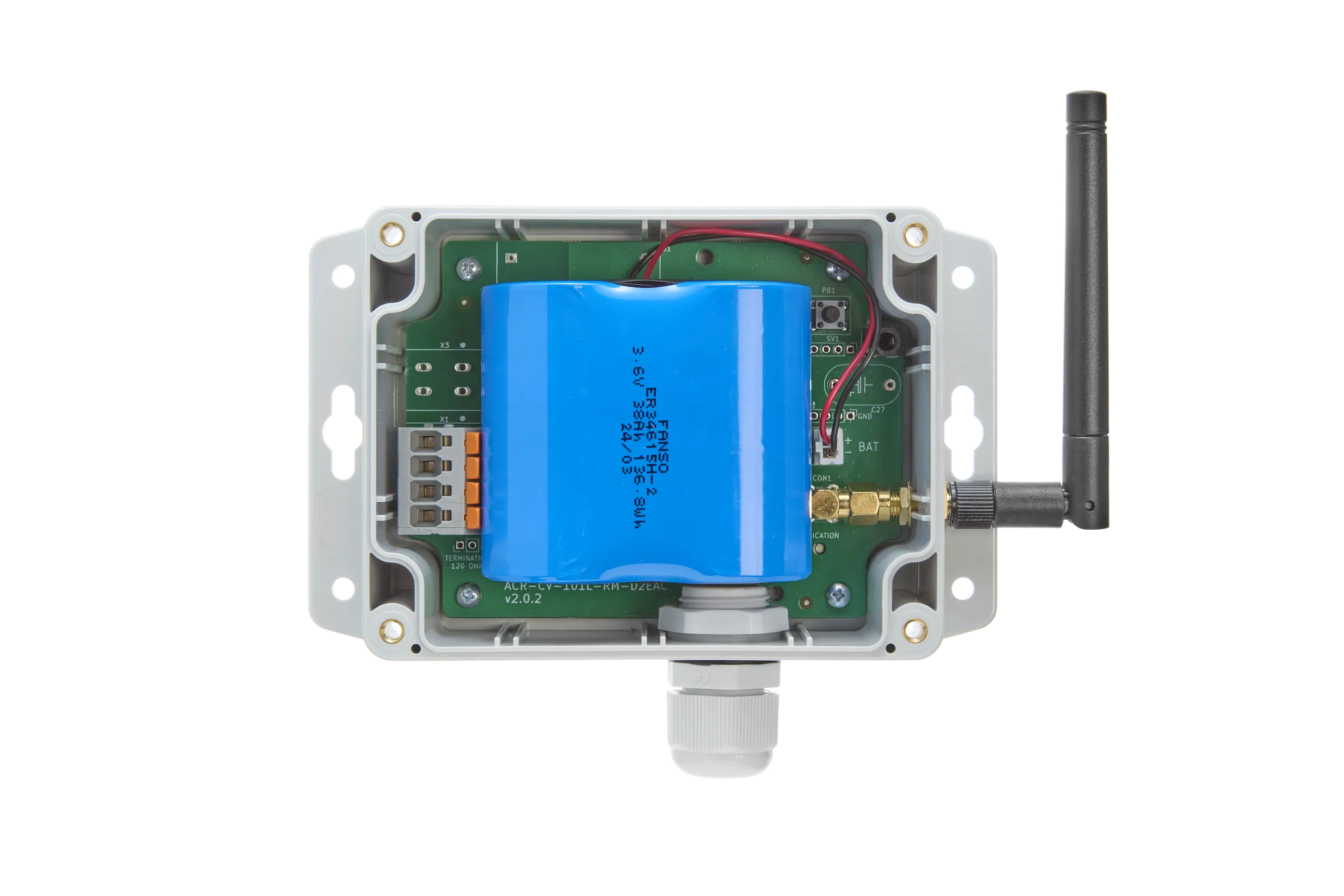

- ACR-CV-101L-R12-D2* / RS485 Modbus to LoRaWAN with a 5V - 24V DC AUX power supply, 2xD-cell battery powered
- ACR-CV-101L-R12-EAC* / RS485 Modbus to LoRaWAN with a 5V - 24V DC AUX power supply, externally powered
*Under MOQ
- 1x RS485 to LoRaWAN converter
- 1x Installation manual
- 1x Battery (for battery powered units)
- 1x LoRaWAN 2JW0315-868-C675 antenna
From common issues to proven solutions
If you have ever looked for a solution for Modbus communication over a LoRaWAN network such as with various sensors, probes, electricity meters or gas meter converters you have likely encountered the following situations:
Modbus is not standardised, and each manufacturer sends data differently, creating chaos.
The Modbus protocol exists, but the data format – registers, endianness, offsets, or structure – is defined individually by each manufacturer. As a result, every device requires custom parsing logic, making integration complex, error-prone, and time-consuming.
We allow defining parsing libraries at the device level, which the converter automatically applies.
The data are unified into a clear structure that can be easily integrated into your system.
You need to support multiple protocols in one installation – Modbus, DLMS, IEC 62052.
Each meter type uses a different protocol, and standard converters typically handle only one. This requires combining several devices, increasing complexity and cost.
Our converter supports Modbus, DLMS, and IEC 62052 over RS485 or via an optical head.
Various instruments can be read with a single device, keeping the system compact and efficient.
Meter replacement requires on-site reconfiguration of the converter.
After several years, meters need replacement, and the converter must be reprogrammed on site. This means service trips, additional costs, and potential errors.
We support remote configuration via LoRaWAN and NB-IoT.
When a meter is replaced, register mapping or protocol can be changed remotely without visiting the site.
RS485 devices require power supply, such as optical heads or ultrasonic sensors, but none is available.
External RS485 sensors often lack their own power source, so cables and electrical inspection are needed, making the installation costly and slow.
The converter can power connected RS485 devices such as optical heads, sensors, or electricity meters directly from the unit.
Installation requires no external power supply and no electrical work.
