Bring your wM‑Bus & BUP meters to NB-IoT
Eliminate blind spots in your meter reading network. The wM-Bus bridge relays data over NB-IoT from hard-to-reach meters, with an IP68-rated housing for outdoor installation. Supports both wM-Bus OMS and Sensus BUP protocols.
Manual reading visits are your real cost
Based on a conservative estimate of €25 per site visit – technician time, travel, admin typical for Central European deployments. In some countries, the legislation dictates weekly readings, for the calculation we use monthly
Reading costs are estimated based on efficiency savings. Reading a full street with no travel time between meters costs less than €25 per meter. The same applies to the 1,500 residential meters across the city, using walk-by readouts with occasional in-person meter checks.
Built for these situations
If it speaks OMS wM-Bus or Sensus protocol, the bridge reads it. Mixed manufacturers, one data stream, no vendor lock-in.
Bridge has a true IP68 protection against water or dust; a crucial feature for use in water metering shafts ensuring long service life.
No device-management platform, or no time to integrate? We'll host it and send data straight to your systems, then hand over whenever you're ready.
Devices arrive ready to install, with all the installation material included. Setup takes minutes, with no on-site configuration. Perfect for large-scale rollouts.
Water utilities are moving from walk by reading to fixed networks, whether LoRaWAN, NB-IoT, FlexNet or Mioty. No regulation forces this on water, but the economics already make sense on their own. Whatever network you pick, 15 to 20 percent of meters stay out of reach, usually the ones in pits and basements where the signal can't get out. That's where our wM-Bus bridge comes in. It reads the meters already installed and sends their data out over LoRaWAN, so you pull the signal out of the shaft instead of reinforcing your whole network to reach a few blind spots.
Every detail counts in the field
Built to last
- IP68 rated – fully waterproof and dustproof; suitable also for water shafts or outdoor installations
- Remote updates – push configuration and firmware over NB-IoT
- Battery life time of up to 12 years to outlive any water meter in your network
Quick commisioning
- NFC configuration – change settings anytime with a tap from the Android app, nothing to open
- Flexibility – while the main use case is with 1 meter, you can connect up to 3 meters
- Commissioning process takes 3 minutes – scan the meters around you, select the ones you want and leave

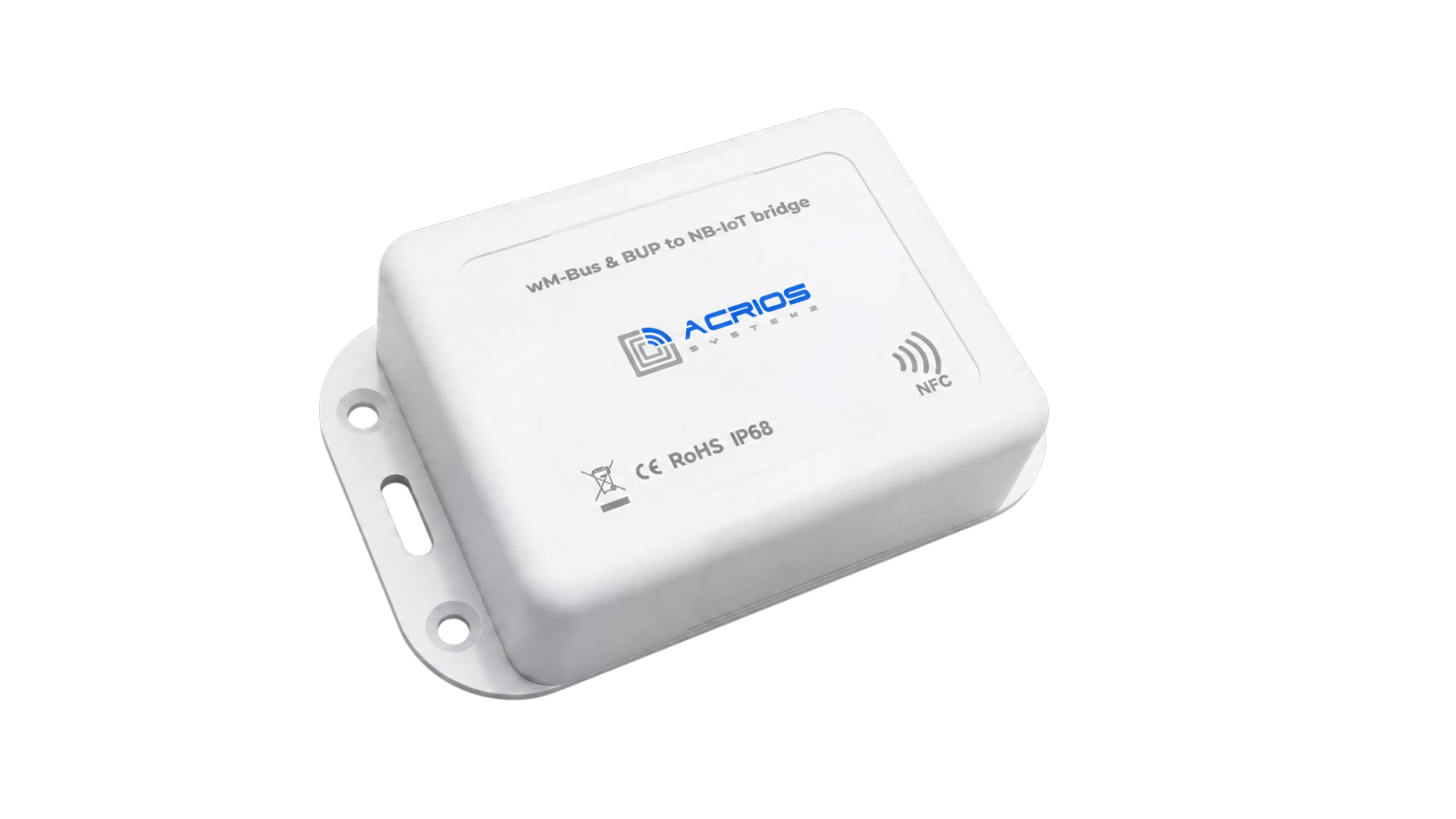

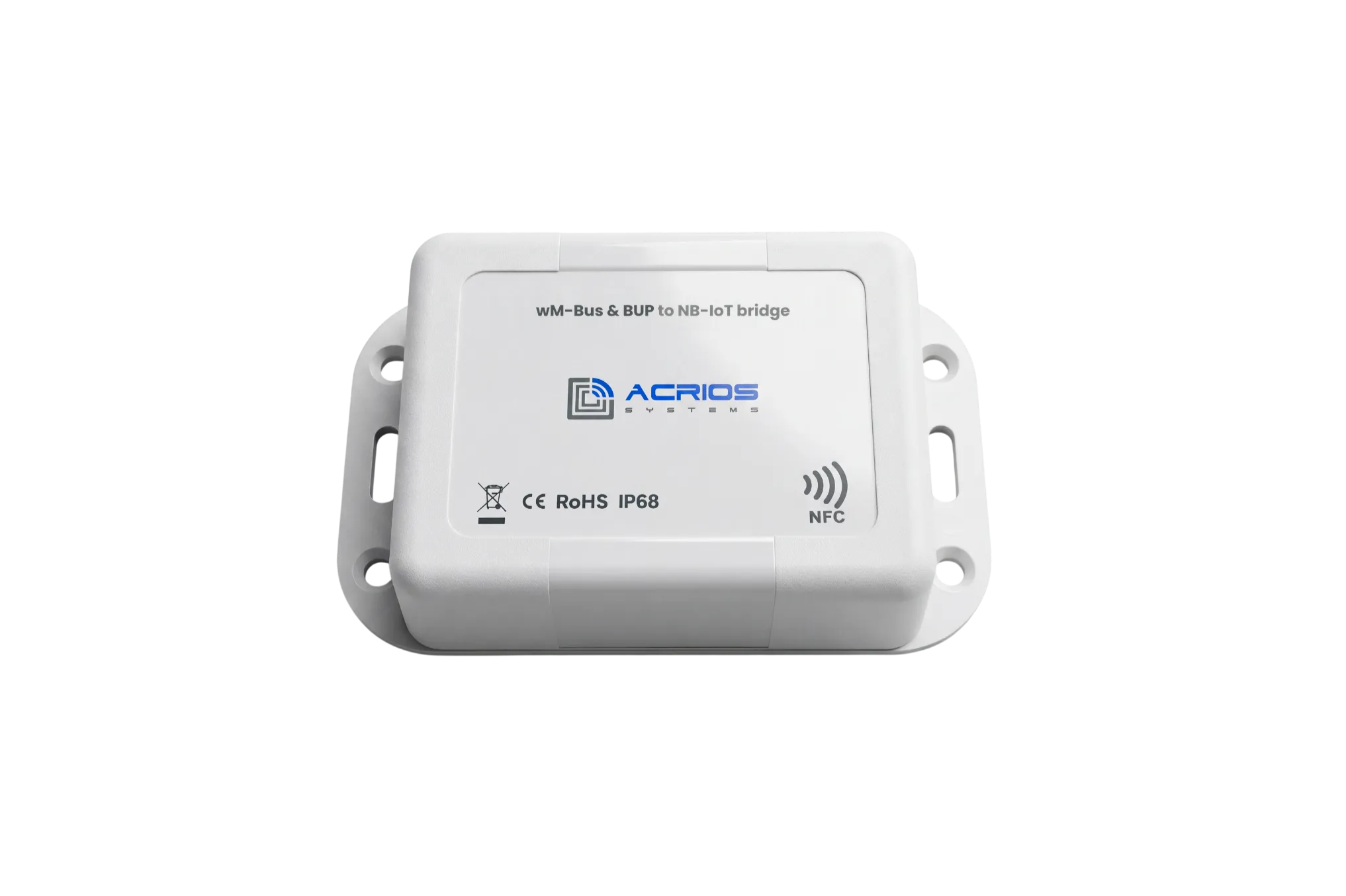

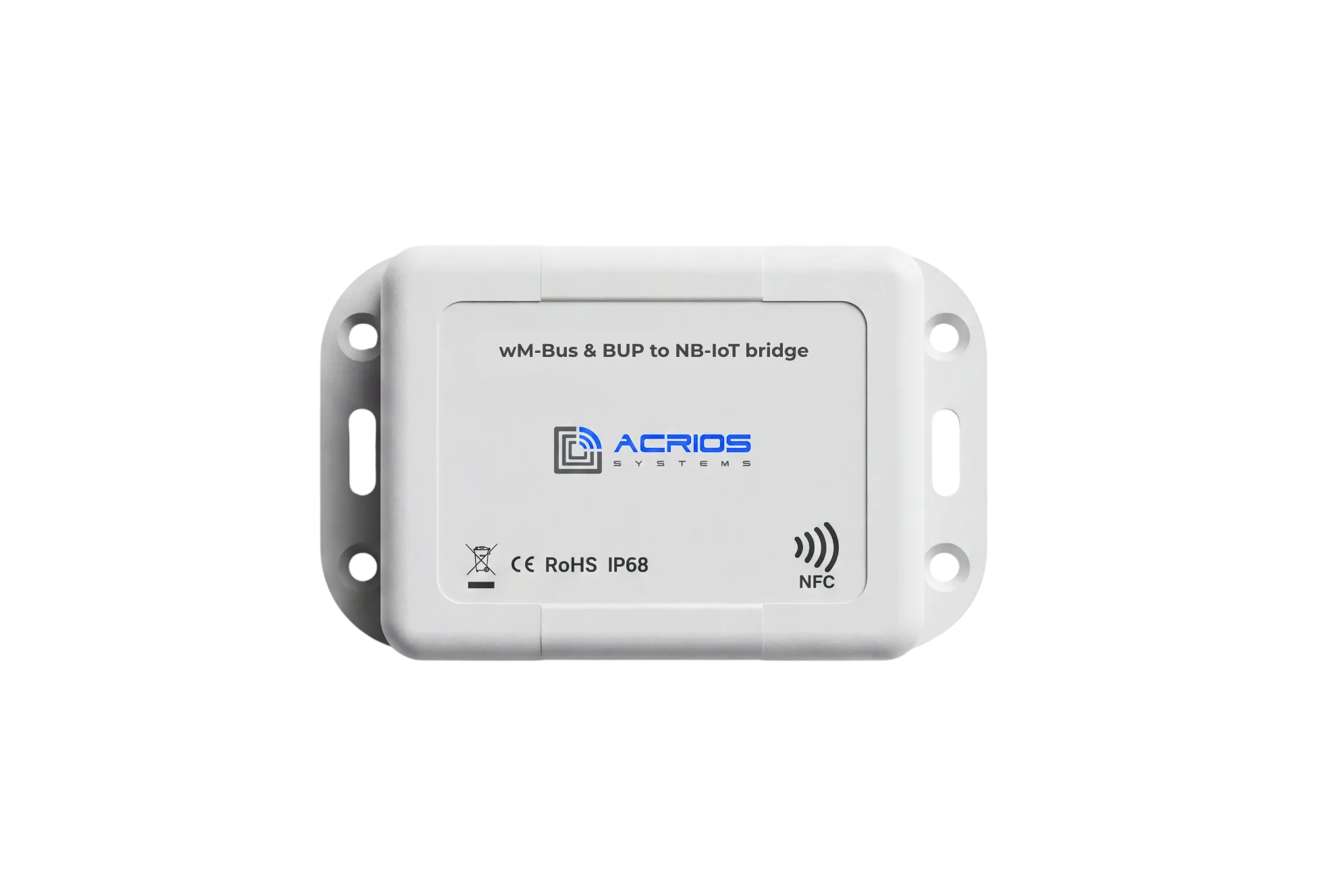

Fits the tightest shaft
- 6 fixation points - 4x M4 screw or 2x oval hole for a zip tie
- Mount your way - screw it to the wall or strap it to the pipe, whatever the pit allows
- Compact - 88 x 68 x 31 mm, 220 g, tucks under the lid
Set up in minutes, not hours

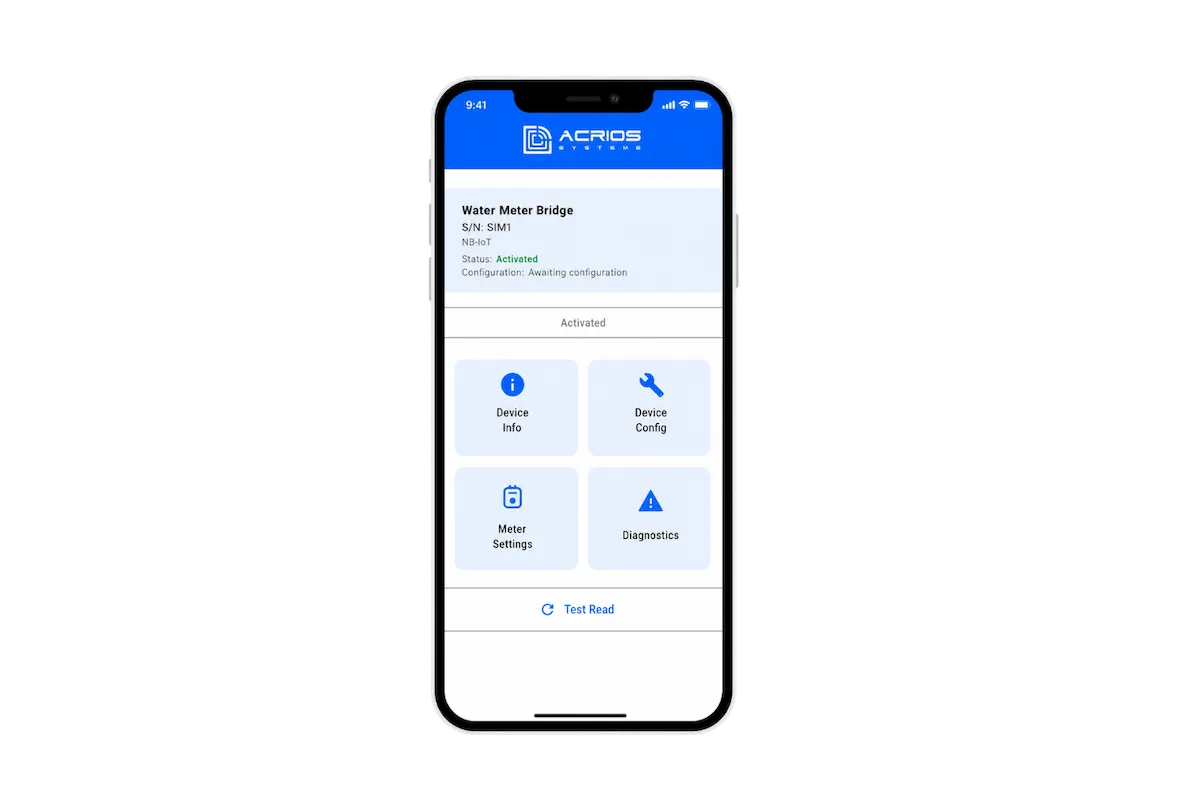

No laptop, no cable, no scripting. Hold your phone to the ACR-MC bridge, let it scan the meters nearby, pick the ones you want, and the device is live. It all runs over NFC in our Android app, the same gesture your team already uses on the water meters.
Activate
Tap the phone with our configuration app and activate the device
Scan
Let the device scan for 1 minute to find meters around you - both wM-Bus OMS and Sensus BUP
Select
Select the meters you want to read and finish the configuration
Why installers choose ACRIOS
Water shafts are permanently damp, and a silica gel sachet holds out only until it saturates. So we do not rely on one. The ACR-MC electronics are fully potted, leaving no air and no path for moisture to reach them.
We can receive data not only from wM-Bus OMS meters, but also from Sensus BUP proprietary protocol.
The business of water utilities is often not an IT or development of new tools. That's why we can also provide you with our device management tool, reducing the entry barrier to a minimum. You don't need an IT education to get data from your meters.
Designed and produced in the Czech Republic. Full firmware control, Cyber Resilience Act ready, long-term support guaranteed.
The obvious alternative often doesn't exist
Replacing every meter with a NB-IoT model means heavy CAPEX and real workflow implications. Plus, the NB-IoT water meter portfolio can be quite limited for now.
Full NB-IoT replacement
- The choice of NB-IoT meters is still narrow next to the huge range of wM-Bus meters on the market
- You end up replacing meters that still work perfectly and would otherwise stay in service for years
- You need to answer "What if I can't get the signal out of the shaft" as you can not add extra NB-IoT gateway
- The choice of NB-IoT meters is still narrow next to the huge range of wM-Bus meters on the market
- You end up replacing meters that still work perfectly and would otherwise stay in service for years
- You need to answer "What if I can't get the signal out of the shaft" as you can not add extra NB-IoT gateway
ACRIOS wM-Bus bridge
- Keep the meters you already have in the ground, so CAPEX stays low and nothing working gets scrapped
- Lift the signal out of the shaft instead of adding gateways to reach it, so you cover the hard spots without densifying the network
- Works with the wM-Bus OMS and Sensus BUP meters already in the field, not just the short NB-IoT list
For wired M-Bus, pulse or Modbus meters, ACRIOS makes converters for those protocols too. Ask us if your site has mixed meter types.
- Keep the meters you already have in the ground, so CAPEX stays low and nothing working gets scrapped
- Lift the signal out of the shaft instead of adding gateways to reach it, so you cover the hard spots without densifying the network
- Works with the wM-Bus OMS and Sensus BUP meters already in the field, not just the short NB-IoT list
For wired M-Bus, pulse or Modbus meters, ACRIOS makes converters for those protocols too. Ask us if your site has mixed meter types.
Integrate into your existing platform.
No middleware required.
The bridge sends standard M-Bus frames over LoRaWAN, any system that works with M-Bus can parse them directly. No ACRIOS software required. An optional management platform is available if you need it.
Direct integration into your platform
The wM-Bus bridge can be integrated directly with any network server. The communication protocol is fully documented and you don't need any platform or 3rd party software.
- Fully documented protocol for integration
- Compatible with any NB-IoT network server
- No license, no lock-in, no ongoing fees
ACRIOS Platform
If you don't have a platform yet, or need a dedicated metering management layer, ACRIOS offers a hosted web platform for device management, group allocation, and data export.
- Hosted by ACRIOS or deployed on your servers
- Installation & unit management
- REST API for custom integrations (OAS3)
- Used in production across water utilities and building operators
Works with any NB-IoT network
The wM-Bus bridge uses UDP protocol over NB-IoT – any NB-IoT network can receive and forward the frames.
Trusted by teams across Europe
The solution is quick to install, requires no training and proves to be stable over time. We offer the ACRIOS remote reading solutions to all of our customers who want to comply with the EED decree.
DEPLOYMENT
We successfully integrated the ACRIOS converter in our smart metering project, seamlessly connecting hundreds of meters. Performance and stability have been outstanding, even in challenging environments.
We were searching for a way to connect existing M-Bus meters to NB-IoT and found the solution provided by ACRIOS valuable for exactly these use cases.
Specifications
Hardware
Order codes
Supported features
- Support for wM-Bus OMS and Sensus BUP protocols, 868 MHz and 433 MHz
- Supports T1 and C1 modes
- Connects up to 3 meters per bridge (main use case is 1:1)
- Fully potted IP68 enclosure, safe for installation in water metering shafts
- 6 fixation points for mounting to wall, tube or collar (4× M4 pan screw, 2× oval hole for zip-tie fixation)
- NFC configuration via Android app, no technical training required
- Remote configuration and meter re-pairing via NB-IoT downlink
- Firmware updates over NB-IoT
- Configurable meter whitelists, reading and transmission intervals, archive readout, time synchronisation, confirmed messages, new meter scan, wake-up margin and AES key
- Integrates with any NB-IoT network provider and network server
- C-cell battery with hourly reading and daily sending, 10 years of life (extendable to 12)
Everything you need to integrate
Integration manuals, protocol specs, installation guides, video tutorials.
Scan meters, select data, set intervals. No scripting required.
Do you need support? Contact us via our JIRA service desk.
Everything you might need on site
Optional accessories available directly from ACRIOS. Ask us when ordering.
ACRIOS platform
Already have a platform? Connect via our API. Need one? ACRIOS provides a hosted web platform for device management and data export options compatible with almost any system.

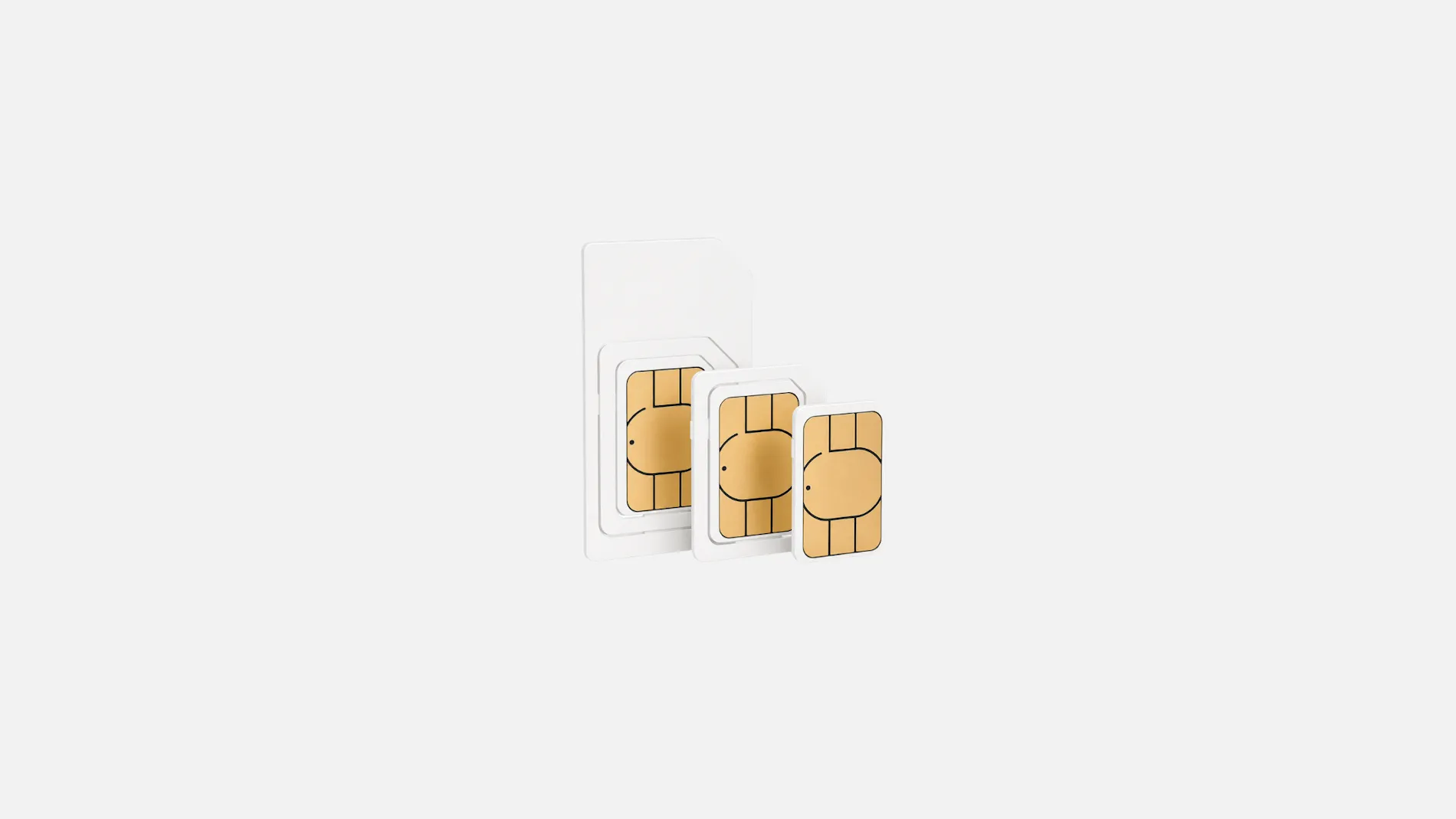

NB-IoT SIM card
NB-IoT SIM card, prepaid for 10 years with an account under your company name.
Maddalena ELECTO SONIC
Do you want to also pilot an NB-IoT meter? The Maddalena electronic ultrasonic meter might be a good fit to your application.
Not sure which accessories you need? Ask us when requesting a sample – we'll include what's relevant for your setup.
Works with meters you already have
Verified with 30+ meter models. Any M-Bus standard-compliant meter should work, these are confirmed in the lab and in the field.
Frequently asked questions
Everything a first-time buyer typically wants to know. If your question isn't here, ask us directly.
It reads both wM-Bus OMS-compliant meters and the proprietary Sensus BUP protocol, in T1 or C1 mode, on 868 MHz or 433 MHz. If your meter isn't on either list, send us the datasheet and we'll confirm compatibility.
Up to 3 per bridge, though the main use case is 1:1, one bridge per meter. This makes it a good fit for individual pits and shafts rather than aggregating a whole cluster.
Yes. The enclosure is fully potted, no air gap, no silica gel, no moisture path to the electronics. It's built specifically for permanently damp water shafts, not just splash-resistant for outdoor use.
No. The bridge sends standard M-Bus frames over NB-IoT; any system that can receive and parse M-Bus data can use them directly. The ACRIOS platform is an optional add-on if you want hosted device management and unified data export instead of building that yourself.
Yes. Configuration changes and meter re-pairing can be pushed over NB-IoT downlink, and firmware updates are delivered over the air, so you don't need physical access to the device after deployment.
Yes. Sample units are available for testing, pilot projects and integration validation before larger deployments.
